一、概述：
全自動自清洗式過濾器，設備結構緊湊、占地少、運行經濟、抗沖擊負荷能力強、處理效率高，同時用戶可根據用水要求更換中間篩筒，以達到過濾精度。
二 、設備特點：
·設備的布置：室內、室外均可，（但選用時必須說明）。
·設備對周圍環境無影響，無噪音、無振動等二次污染。
·全自動智能化控制，無需專業管理人員。
·操作簡單、維護方便、效果穩定、使用壽命長。
·設備占地少、處理量大、反洗耗水量小。
·設備可根據用戶要求、現場條件，同時依據原水水質和出水要求進行特殊處理。
三、設備的技術參數和適用范：
·單套設備處理量：100.0～2500.0㎡/h。
·設備的過濾精度：3500～10μm。
·最小 工作 壓力：0.20MPa。
·**** 工作 壓力：1.60MPa.。
·清 洗 歷 時：1～3min。
·清 洗 水 耗 量：～500L。
·工 作 溫 度：4～80℃。
·設備 主體 材質：優質碳鋼或不銹鋼。
·篩 筒 材 質：不銹鋼（316）。
·電 機 功 率：N=0.75kw。
·設備主要適用于電廠、鋼廠等各種行業的冷卻 循環水過濾系統。
四、設備型號：
五、工作原理
（1）正常工作
需過濾水由設備下部進入設備內的篩筒，經篩筒過濾，濾后水由設備側面流出，過濾過程完成。但篩筒截留懸浮物的增多，設備的進出水壓差升高，當壓差達到設定值時，則自動清洗，不同的篩筒規格適用于不同的過濾精度。
（2）清洗方式
本設備采用負壓吸吮器，負壓吸吮器由一臺減速電機帶動，繞篩筒內壁作螺旋運動。負壓吸吮器將篩筒表面的雜物吸吮，同時排出體外，清洗時間為1～3min。
（3）控制系統
過濾設備設置在線差壓表，當壓差達到設定值時，輸出標準信號至電控柜。然后控制電動排污閥和負壓吸吮器開始工作。
六、篩筒精度對照表：

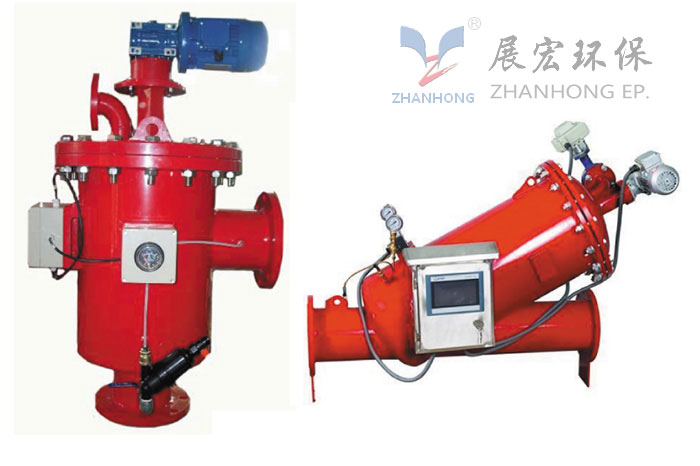

Self-cleaning filter
I. Overview:
The advantages of the fully automatic self-cleaning filter are: compact structure, small footprint, economical operation, strong impact load resistance and high processing efficiency. At the same time, the user can replace the intermediate sieve cylinder according to the water requirement to achieve the filtration precision.
II, the equipment features:
· Equipment layout: indoors and outdoors, (but must be explained when selecting).
·The equipment has no influence on the surrounding environment, no secondary pollution such as noise and vibration.
·Fully automatic intelligent control, no need for professional management personnel.
·Simple operation, convenient maintenance, stable effect and long service life.
·The equipment occupies less space, the processing capacity is large, and the backwashing water consumption is small.
·The equipment can be specially treated according to the user's requirements, site conditions, the raw water quality and water requirements.
III. Technical parameters and applicable specifications of the equipment:
· Single set of equipment processing capacity: 100.0 ~ 2500.0m2 / h.
· Equipment filtration accuracy: 3500 ~ 10μm.
· Minimum working pressure: 0.20 MPa.
· Maximum working pressure: 1.60MPa.
· Cleaning time: 1 to 3 minutes.
· Washing water consumption: ~500L.
· Working temperature: 4 ~ 80 ° C.
·Material body material: high quality carbon steel or stainless steel.
· Screen cylinder Material: Stainless steel (316).
• Motor power: N = 0.75 kW.
·The equipment is mainly suitable for cooling circulating water filtration systems in various industries such as power plants and steel mills.

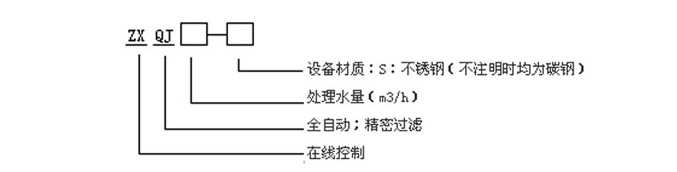

Ⅳ. Equipment model:
設備材質：Equipment Material 不銹鋼：stainless steel
處理水量：The amount of water treated 全自動：Fully automatic
精密過濾：Precision filtration: 在線控制：Online control
V. Working principle
(1) normal operation
The water to be filtered enters the sieve cylinder in the equipment from the lower part of the equipment, and is filtered through the sieve cylinder. The filtered water flows out from the side of the equipment, and the filtration process is completed.
The increase of suspended solids in the screen cylinder increases the pressure difference between the inlet and outlet of the equipment. When the pressure difference reaches the set value, it automatically cleans. Different sieve cylinder specifications are suitable for different filtration precision.
(2) Cleaning method
The negative pressure sucking device is adopted. The negative pressure sucking device is driven by a deceleration motor and moves spirally around the inner wall of the sieve cylinder. The negative pressure sucker sucks up the sundries on the surface of the sieve tube and excretes them out of the body at the same time. The cleaning time is 1 ~ 3min.
(3) control system
The filter equipment is equipped with an online differential pressure meter. When the pressure difference reaches the set value, the standard signal will be output to the electric control cabinet. Then the electric drain valve and the negative pressure sucker start to work.
VI. Accuracy comparison sheet of sieve cylinder:
微米：Micron 毫米：Millimeter

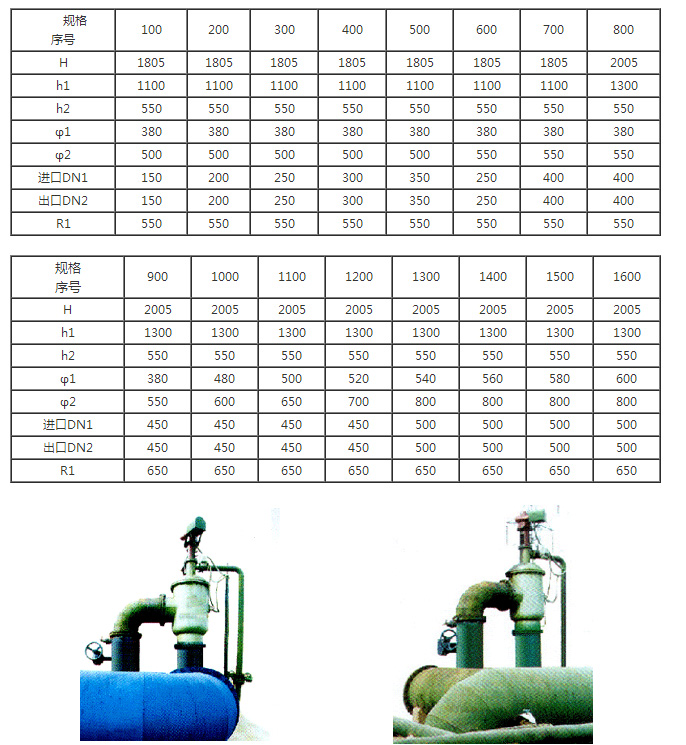

VII. Equipment specification
規格：specification
序號：No.
進口：inlet
出口：outlet
